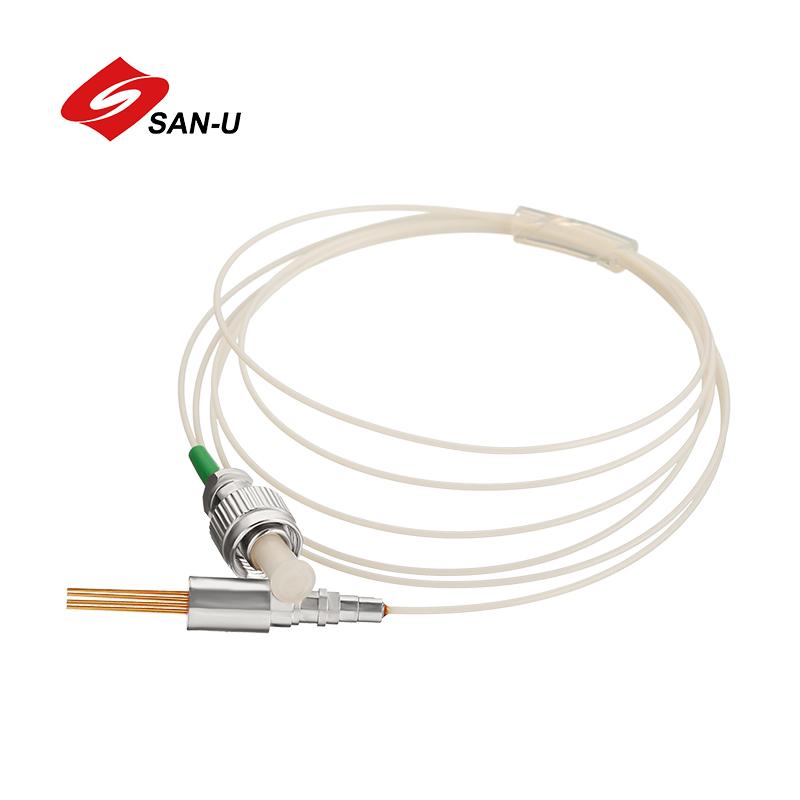

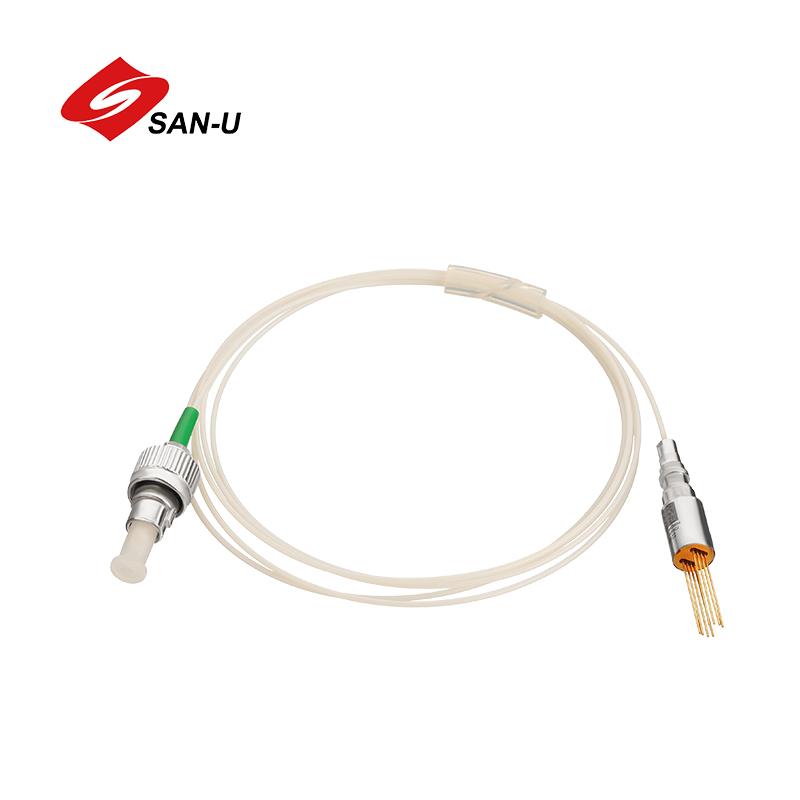

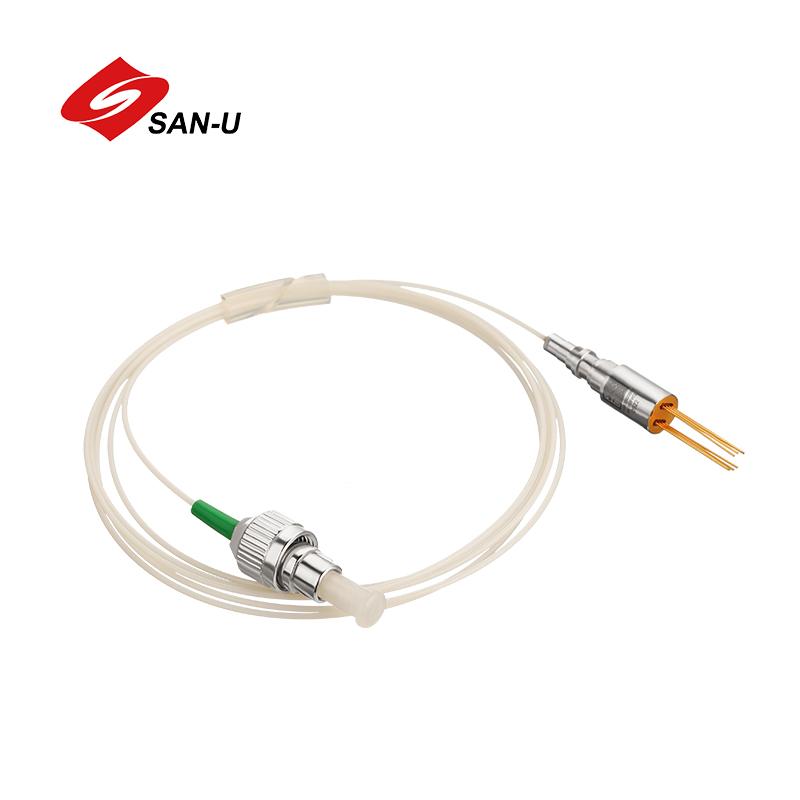

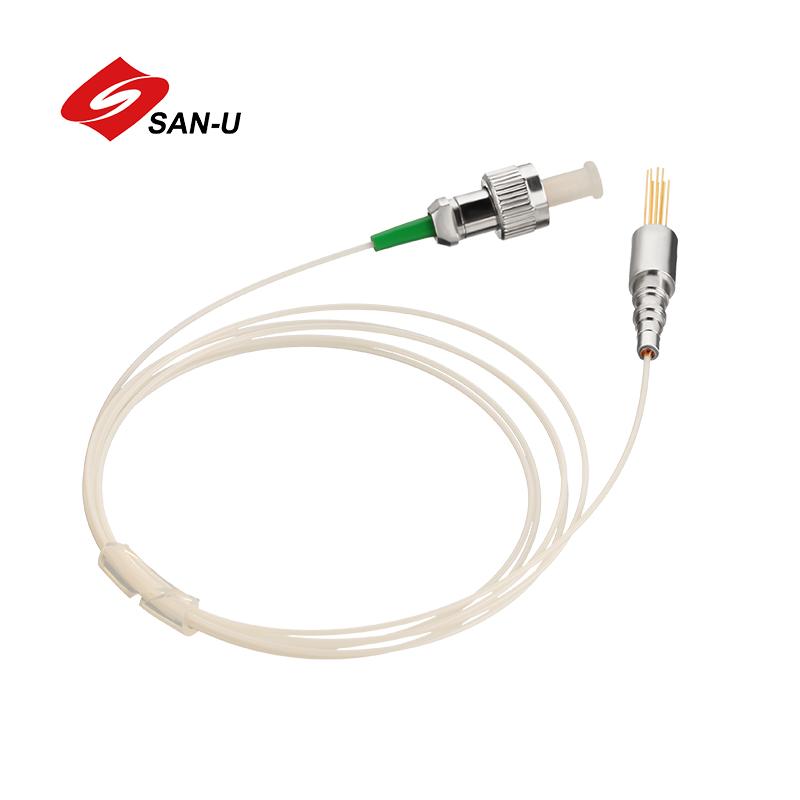

1550nm TOSA 2.5Gbps with pigtail Laser radar diode lidar diode

1550nm TOSA 2.5Gbps with pigtail Laser radar diode lidar diode

Features：

● Low threshold current

● High output power

● Ultra small form-factor 8-pin TO package with aspherical lens

● Very low TEC power consumption

Wavelength :
1550nm
Rate :
2.5G

Inquiry now Download

Product Details

1550nm TOSA 2.5Gbps with pigtail Laser radar diode lidar diode

Features:

Low threshold current

High output power

Ultra small form-factor 8-pin TO package with aspherical lens

Very low TEC power consumption

Specifications:

bsolute Maximum Ratings

Parameter	Symbol	Min	Max.	Unit
LD Reverse Voltage	Vr(LD)	-	2	V
LD Forward Current	If (LD)	-	120	mA
TEC Voltage	V(TEC)	-	1.5	V
TEC Current	I (TEC)	-	0.9	A
Operating Temperature	Top	-5	70	℃
Storage Temperature	Tstg	-40	100	℃
Lead Solder Temperature	-	-	260	℃
Lead Soldering Time	-	-	10	s

1550nm Laser radar diode

Laser radar diode lidar diode 1550nm 2.5G DFB Seed source TOSA diode package semiconductor laser radar sensor 1550nm 2.5G DFB TOSA diode 1550nm Laser radar diode Laser radar diode Application

Xiamen San-U Optronics Co., Ltd was established in 2001 year, which is a new high-tech enterprise

specializing in R&D and massproduction in highspeed semi-conductor Laser / detector , optical

components and module.San-U products are widely used incloud computing, HTTP,sensor detector

territory ,optical telecommunication,and so on.

San-U Company established “Xiamen University San-U Optronics Technology R&D Center” and

“Xiamen Optical communicationcomponents test key lab” Successively based on Industry-University

Cooperation， San-U R&D team burden more t han 20projects of National,Province and city class

innovation fund and technology aid, which possesses 4 items innovation patents andmore than 20

realistic new type patents. The results and findings of R&D by San-U are all turned into mass

production and becomethe market hot points products. San-U is awarded as ‘Xiamen Leading

enterprise as technology small giants’ , ‘Fujian Innovation enterprise’. Nationa l Innovation Fund

Project - - 10G Semi-conductor Laser and components has also been verified. San-U company

has priority to enter Chinese domestic market by replace import products. San-U has already

established Automatic Chip Auto assembly line, components auto coupling production line and

has already access mass production. San-U production line has already realize the information

and intelligence, which is atleading position within domestic. Optical components automatic mass

production technology development project has already gained the National Innovation Fund’s

major projects support. In optical communication industry transformation and upgrading to

automation scale mass production aspect has demonstrative effect.
